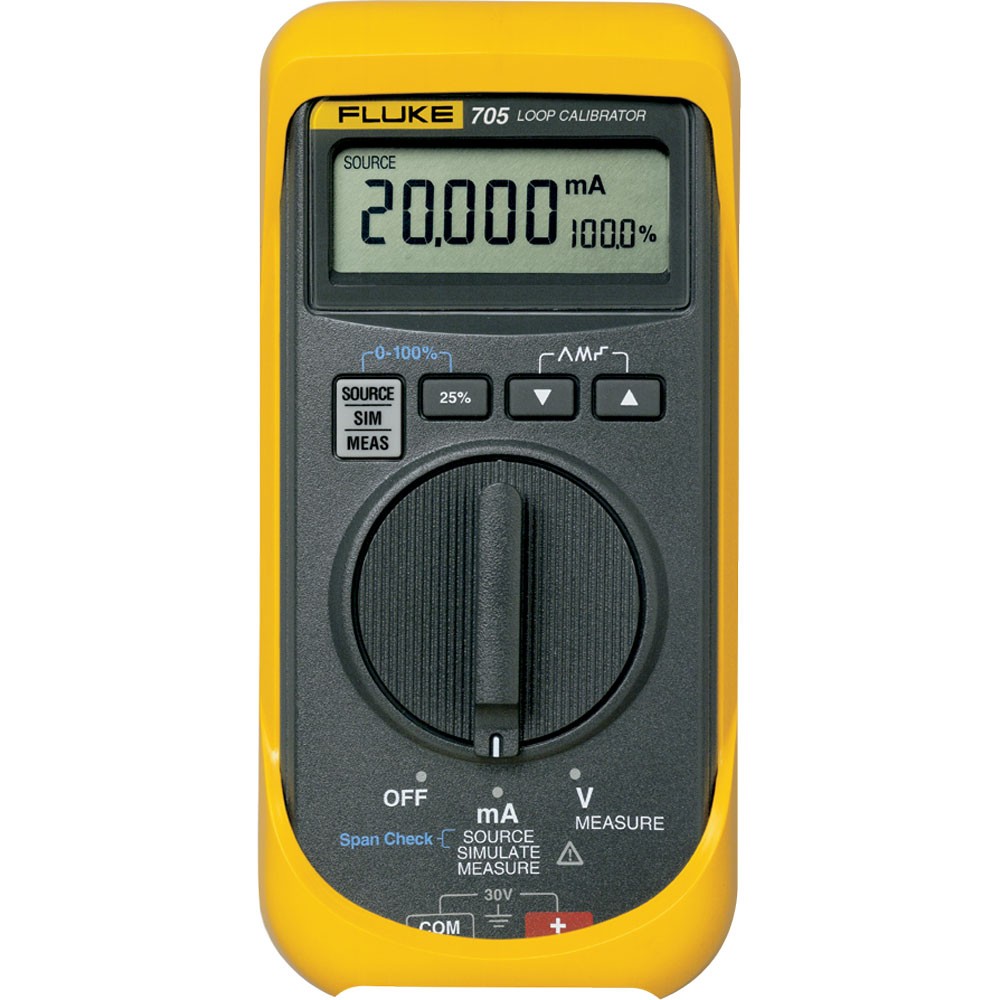

Fluke 705

De Fluke 705 Loop Calibrator is een kostenefficiënte, geïntegreerde oplossing voor kalibratie, reparatie en onderhoud van lussen.

Een krachtige luscalibrator voor een betaalbare prijs. Dat is de Fluke 705 Loop Calibrator. Deze alles-in-één oplossing heeft vele opties:

  • Een groot display met eenvoudige knoppeninterface
  • Tegelijkertijd mA en % uitlezing
  • mA nauwkeurigheid van 0.02%
  • Snel reagerende knoppen
  • “Span Check”
  • Handige functies voor functionele lustesten
  • 24 volt internal loop supply
  • 9V batterij
  • 0 – 20 mA of 4 – 20 mA startmode
Specifications
Current Measurement
Range:  0 to 24 mA
Resolution:  0.001 mA
Accuracy:  0.02% Rdg + 2 LSD
Current Sourcing
Range:  0 to 20 mA or 4 to 20 mA
Accuracy:  0.025% Rdg + 2 LSD
Drive Capability:  1000 Ω @ 24 mA
Current Simulation
Range:  0 to 20 mA or 4 to 20 mA
Accuracy:  0.025% Rdg + 2 LSD
Ext. loop voltage requirement:  12-30 V
Loop Power
 While measuring mA, 24 V
Voltage measurement
Range:  0 to 28 V DC
Resolution:  1 mV
Accuracy:  0.025% Rdg + 2 LSD
Environmental Specifications
Operating Temperature
 -10 ºC to 55 ºC
Storage Temperature
 -40 ºC to 60 ºC
Humidity (Without Condensation)
 0 to 90% (0 ºC to 35 ºC); 0 to 70% (35 ºC to 55 ºC)
Temperature Coefficient
 -10 ºC to 18 ºC, 28 ºC to 55 ºC, ±.005% of range per ºC
Safety Specifications
Safety
 CSA C22.2 No. 1010.1:1992
EMC
 EN50082-1:1992 and EN55022:1994 Class B
Maximum voltage
 30 V
Mechanical & General Specifications
Size
 152 x 70 x 41 mm
Weight
 340g
Batteries
 One 9V battery
Warranty
 Three years
Shock & Vibration
 per MIL-T-28800 for a Class 2 Instrument
Display current and % of span
 Yes
Auto step, auto ramp
 Yes
Span Check
 Yes

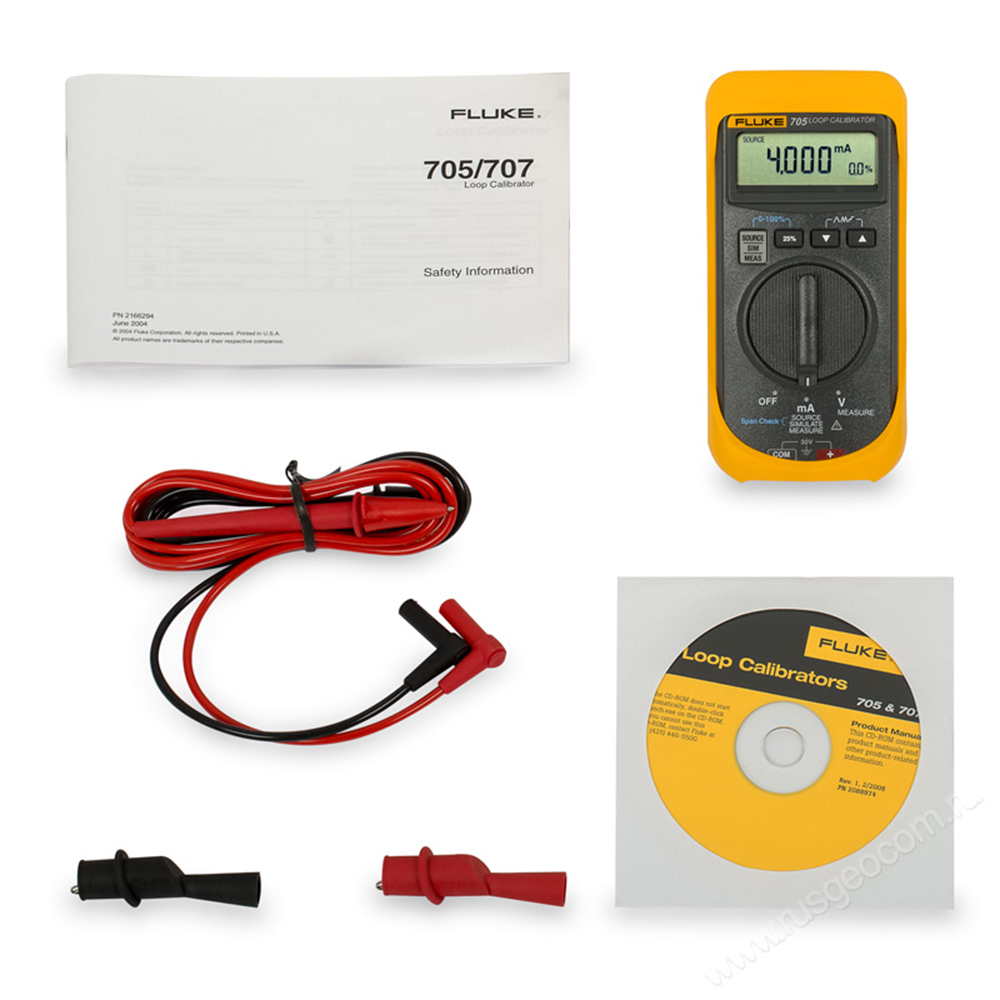

Loop Calibrator including:

  • AC70A Alligator Clips
  • C10 protective yellow holster with Flex-Stand™
  • Instruction sheet
  • TL75 safety-designed test lead set
  • NIST- traceable calibration report and data
